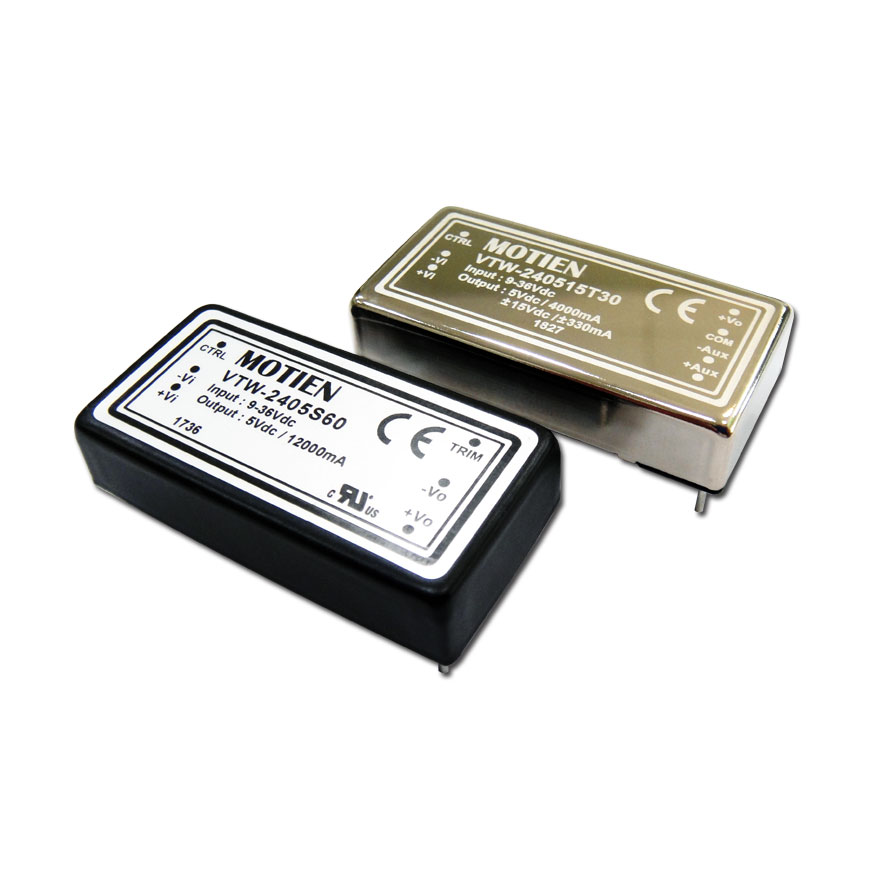

隔离型直流模块2×1(7.5-60W)
2019-08-06 17:07 共有 人浏览

2×1 (7.5-60W)

模甸科技提供一系列完整的隔离稳压输出直流对直流电源转换器,包含高功率密度之2"x1"包装、2:1与4:1宽输入范围产品,输出瓦特数介于7.5W至60W。全系列皆内建短路保护装置,另有散热片可供选择。全系列产品皆具有高效率与CE认证。
系列 输出功率 输入电压范围 输出电压 I/O 隔离电压 包装(Inch) 非/稳压 认证

V7-7.5W

7.5W 9-18, 18-36, 36-72 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 1.5KV~3.5KV 2×1 (2*1*0.4) Regulated V

V7-10W

10W 9-18, 18-36, 36-72 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 1.5KV~3.5KV 2×1 (2*1*0.4) Regulated V

V7-12W

12W 9-18, 18-36, 36-72 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 1.5KV~3.5KV 2×1 (2*1*0.4) Regulated V

V7-15W

15W 9-18, 18-36, 36-72 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 1.5KV~3.5KV 2×1 (2*1*0.4) Regulated V

V7E-15W

15W 9-18, 18-36, 36-72 3.3, 5, 12, 15, ±3.3, ±5, ±12, ±15 1.6KV~3.5KV 2×1 (2*1*0.4) Regulated -

V7W-10W

10W 9-36, 18-72 3.3, 5, 7.2, 9, 12, 15, ±5, ±7.2, ±9, ±12, ±15 1.5KV 2×1 (2*1*0.4) Regulated V

V7W-12W

12W 9-36, 18-72 3.3, 5, 7.2, 9, 12, 15, ±5, ±7.2, ±9, ±12, ±15 1.5KV 2×1 (2*1*0.4) Regulated V

V7W-15W

15W 9-36, 18-72 3.3, 5, 7.2, 9, 12, 15, ±5, ±7.2, ±9, ±12, ±15 1.5KV 2×1 (2*1*0.4) Regulated V

V8-20W

20W 9-18, 18-36, 36-75 3.3, 5, 12, 15, ±12, ±15 1.6KV 2×1 (2*1*0.4) Regulated -

V9-20W

20W 9-36, 36-75 3.3, 5, 12, 15, ±5, ±12, ±15 1.6KV 2×1 (2*1*0.4) Regulated V

VT-30W

30W 9-18, 18-36, 36-75 3.3, 5, 5.1, 12, 15, ±5, ±12, ±15 1.6KV 2×1 (2*1*0.4) Regulated -

VT-40W

40W 9-18, 18-36, 36-75 3.3, 5, 12, 15, ±12, ±15 1.6KV 2×1 (2*1*0.4) Regulated -

VT-50W

50W 9-18, 18-36, 36-75 3.3, 5, 12, 15 1.6KV 2×1 (2*1*0.45) Regulated V

VTW-30W

30W 9-36, 18-75 3.3, 5, 5.1, 12, 15, ±5, ±12, ±15, 3.3/±12, 3.3/±15, 5/±12, 5/±15 1.6KV 2×1 (2*1*0.4) Regulated -



VTW-60W
60W 9-36, 18-75 5, 12, 15, ±12, ±15 1.6KV 2×1 (2*1*0.45) Regulated V
