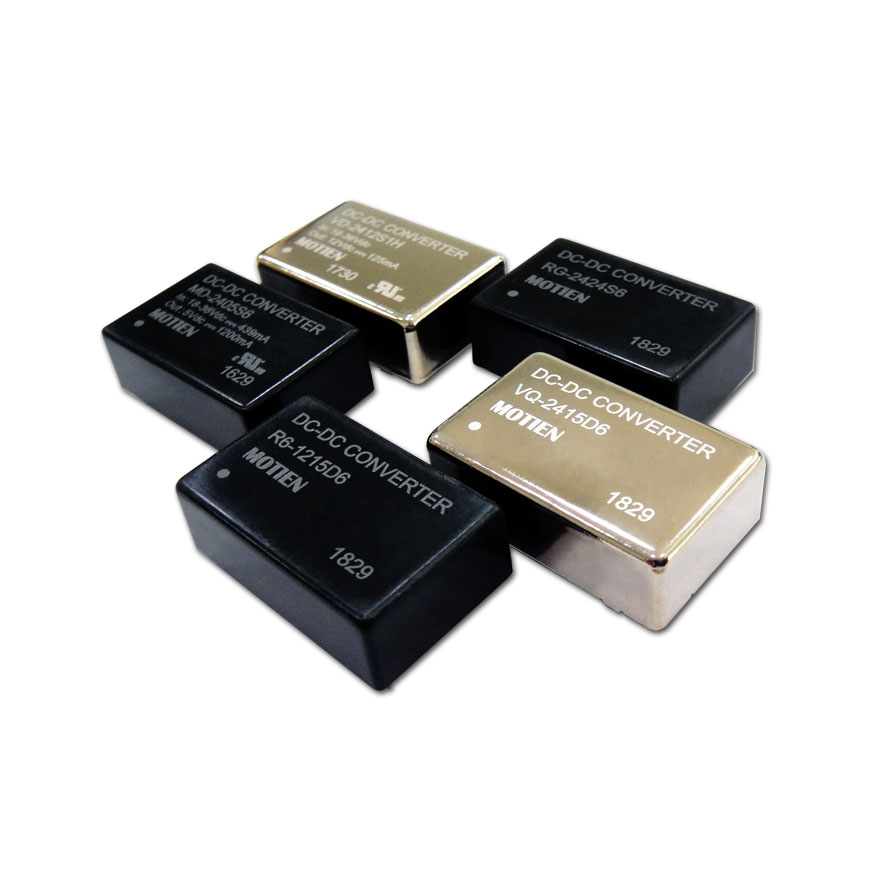

模甸科技提供一系列完整的隔离稳压输出直流对直流电源转换器，包含标准 DIP 24包装、2:1与4:1宽输入范围之稳压单/双输出产品，输出瓦特数介于1.5W至6W。特别设计多种不同脚位系列以符合多样式的需求。全系列皆有塑料与金属外壳可供选择并已内建短路保护装置。其中MD/MK系列 EMC filter不须外加零件即可符合EN55032 Class A。VD/MD/MK并已取得UL认证。| 系列 | 输出功率 | 输入电压范围 | 输出电压 | I/O 隔离电压 | 包装(Inch) | 非/稳压 | 认证 |
|---|---|---|---|---|---|---|---|
FD-4W |
4W | 4.5-9 | 3.3, 5, 12, 15, ±3.3, ±5, ±12, ±15 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
FD-5W |
5W | 4.5-9 | 3.3, 5, 12, 15, ±3.3, ±5, ±12, ±15 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
FD-6W |
6W | 4.5-9 | 3.3, 5, 12, 15, ±3.3, ±5, ±12, ±15 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
MD-3W |
3W | 9-18, 18-36, 36-75 | 3.3, 5, 12, 15, 24, ±3.3, ±5, ±12, ±15, ±24 | 1.5KV~3KV | DIP 24 (1.25*0.8*0.4) | Regulated | V |
MD-6W |
6W | 9-18, 18-36, 36-75 | 3.3, 5, 12, 15, 24, ±3.3, ±5, ±12, ±15, ±24 | 1.5KV~3KV | DIP 24 (1.25*0.8*0.4) | Regulated | V |
MK-3W |
3W | 9-36, 18-75 | 3.3, 5, 12, 15, 24, ±3.3, ±5, ±12, ±15, ±24 | 1.5KV~3KV | DIP 24 (1.25*0.8*0.4) | Regulated | V |
MK-6W |
6W | 9-36, 18-75 | 3.3, 5, 12, 15, 24, ±3.3, ±5, ±12, ±15, ±24 | 1.5KV~3KV | DIP 24 (1.25*0.8*0.4) | Regulated | V |
V6-1.5W |
1.5W | 9-18, 18-36, 36-72 | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
V6-2W |
2W | 9-18, 18-36, 36-72 | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
V6-3W |
3W | 9-18, 18-36, 36-72 | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
V6-4W |
4W | 9-18, 18-36, 36-72 | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
V6-5W |
5W | 9-18, 18-36, 36-72 | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
V6-6W |
6W | 9-18, 18-36, 36-72 | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
VD-1.5W |
1.5W | 9-18, 18-36, 36-72 | 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±9, ±7.2, ±12, ±15, ±18, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | V |
VD-2W |
2W | 9-18, 18-36, 36-72 | 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±9, ±7.2, ±12, ±15, ±18, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | V |
VD-3W |
3W | 9-18, 18-36, 36-72 | 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±9, ±7.2, ±12, ±15, ±18, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | V |
VD-4W |
4W | 9-18, 18-36, 36-72 | 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±9, ±7.2, ±12, ±15, ±18, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | V |
VD-5W |
5W | 9-18, 18-36, 36-72 | 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±9, ±7.2, ±12, ±15, ±18, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | V |
VD-6W |
6W | 9-18, 18-36, 36-72 | 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±9, ±7.2, ±12, ±15, ±18, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | V |
VG-2W |
2W | 9-18, 18-36, 36-72 | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
VG-5W |
5W | 9-18, 18-36, 36-72 | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
VJ-3W |
3W | 9-36, 18-72 | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
VJ-5W |
5W | 9-36, 18-72 | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
VJ-6W |
6W | 9-36, 18-72 | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
VK-3W |
3W | 9-36, 18-72 | 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
VK-4W |
4W | 9-36, 18-72 | 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
VK-5W |
5W | 9-36, 18-72 | 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
VK-6W |
6W | 9-36, 18-72 | 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
VP-1.5W |
1.5W | 9-36, 18-72 | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
VP-2W |
2W | 9-36, 18-72 | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
VP-3W |
3W | 9-36, 18-72 | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
VQ-4W |
4W | 9-36, 18-72 | 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
VQ-5W |
5W | 9-36, 18-72 | 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
VQ-6W |
6W | 9-36, 18-72 | 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
R6-2W |
2W | 4.5-9, 9-18, 18-36, 36-72 | 5, 7.2, 9, 12, 15, 18, 24, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
R6-3W |
3W | 4.5-9, 9-18, 18-36, 36-72 | 5, 7.2, 9, 12, 15, 18, 24, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
R6-4W |
4W | 9-18, 18-36, 36-72 | 5, 9, 12, 15, 24, ±5, ±9, ±12, ±15, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
R6-5W |
5W | 9-18, 18-36, 36-72 | 5, 9, 12, 15, 24, ±5, ±9, ±12, ±15, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
R6-6W |
6W | 9-18, 18-36, 36-72 | 5, 9, 12, 15, 24, ±5, ±9, ±12, ±15, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
RD-2W |
2W | 4.5-9, 9-18, 18-36, 36-72 | 5, 7.2, 9, 12, 15, 18, 24, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
RD-3W |
3W | 4.5-9, 9-18, 18-36, 36-72 | 5, 7.2, 9, 12, 15, 18, 24, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
RD-5W |
5W | 9-18, 18-36, 36-72 | 5, 9, 12, 15, 24, ±5, ±9, ±12, ±15, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
RK-4W |
4W | 9-36, 18-72 | 3.3, 5, 12, 15, ±5, ±12, ±15 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
RK-5W |
5W | 9-36, 18-72 | 3.3, 5, 12, 15, ±5, ±12, ±15 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
RK-6W |
6W | 9-36, 18-72 | 12, 15, ±12, ±15 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
RP-2W |
2W | 9-36, 18-72 | 5, 9, 12, 15, 24, ±5, ±9, ±12, ±15, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
RP-3W |
3W | 9-36, 18-72 | 5, 9, 12, 15, 24, ±5, ±9, ±12, ±15, ±24 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
RP-4W |
4W | 9-36, 18-72 | 3.3, 5, 12, 15, ±5, ±12, ±15 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
RP-5W |
5W | 9-36, 18-72 | 3.3, 5, 12, 15, ±5, ±12, ±15 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
RP-6W |
6W | 9-36, 18-72 | 12, 15, ±12, ±15 | 1.5KV~3.5KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
